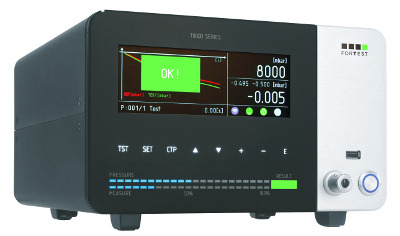

T8090

Dual Absolute Technology

Applications:

  Aerospace   Mechanical
  Automotive   Medical
  Household Appliances   Oleodynamic
  Electronics   Packaging
  Foundry   Gas
  Pneumatics   Heating
  Valves   Hydraulics
  Brakes   Alternative Energy
  Refrigeration   Cylinders

The Dual Absolute.
新的双绝对技术使得消除经典差分系统的缺点、改进其优势成为可能,并革新了几十年来一直停滞不前的行业。由于采用了新的双绝对技术,ForTest将经典的绝对衰减系统的简单性与差分系统的精确性和敏感性结合起来,使泄漏测试仪器达到了前所未有的水平。
新的算法和测量硬件消除了差分系统的典型缺陷,如测试部分和参考样品之间的稳定差异。
新系列的仪器能够以3种不同的方式工作。纯差分、双绝对和中央零度。
新的双绝对技术是如此强大和可靠,以至于ForTest已经决定停止开发经典的差分系统。



Sampling programmable Sensitive as a differential Dual Safe© Solid state measure

Double productivity No periodic maintenance High pressure test Measurement width


A touch of innovation.
新的视频控制器 "ForTest MMI "带来了卓越的人机互动水平,这要归功于一个创新的钢化玻璃电容面板,围绕着一个绚丽的6.2英寸彩色显示屏。
由于菜单中集成了新的数字键盘,参数编程的速度更快,而且大显示屏使测试周期的查看更加清晰。
主屏幕还能实现与快捷功能的互动,如测试程序更改、"智能 "测试存档菜单和使用密码的锁定/解锁。


6.2” colour display Test graphic Full area touch screen Extended programming keyboard

Limitless connectivity.
新的T8090设备包括USB从机、RS232、RS485、Can总线、TTY、Profinet和EtherCAT的端口。组装还可以包括一个可选的以太网端口和一个带有4个输入和8个输出的26芯连接器,这些都是完全可编程的,用于与外部阀门、安全栅、开关等的接口。
前面板上装配有一个主USB端口,用于连接USB钥匙,以保存所进行的测试,备份/恢复参数和升级工具固件。
与热敏打印机、条形码/数据矩阵阅读器和标记器的连接是通过内部菜单自动进行的。


USB key High power outputs RS232, RS485, Can, TTY , Profinet , EtherCAT Ethernet and auxiliary connector

Always better measurements.
由于处理器和协处理器的相互作用,测试周期进一步加快,保持了ForTest一直以来的可靠性,使其独一无二。
我们可以肯定地说,T8090利用了世界上最先进的测量部分,这要归功于窗口的定心技术和双法拉第光学隔离笼,它将沉降时间减少到18毫秒以下。
这使得真正的测量分辨率在1巴时为0.1帕(6巴时为0.5帕),稳定且无噪音。


Built-in processor and coprocessor Centring technology in windows    Resolution from 0.1 Pa

Optimised pneumatic section.
装配最新一代的电磁阀后,与以前的型号相比,灌装速度提高了30%,随着时间的推移,可靠性保持不变。我们的工具不需要在气动部门进行昂贵的维护。实际上,我们的目标是使它们越来越可靠和持久。


Filling speed +30% High strength against humidity No periodic maintenance

Innovative design.
看似简单的设计工作,实际上隐藏着深入的研究,使使用和理解该工具尽可能简单。
前面板由单片钢化玻璃和铝制成,这使得它非常容易清洁,使T8090适合在实验室和生产线上使用。
大量的内部菜单很容易理解,图形界面的设计只显示重要信息。


User-friendly interface Easy to clean Use in sectors at 360°



Model 0-1bar 1-2bar 2-6bar 6-10bar 10-20bar 20-200bar
Accuracy Dp 0,5% RDG+3DGT 0,5% RDG+3DGT 0,5% RDG+3DGT 0,5% RDG+3DGT 0,5% RDG+3DGT 0,5% RDG+3DGT
Range of measurements Dp 0-65 mbar 0-65 mbar 0-65 mbar 0-650 mbar 0-650 mbar 0-650 mbar
Resolution Dp 0,001 mbar 0,002 mbar 0,005 mbar 0,01 mbar 0,1 mbar 0,1 mbar
Direct pressure accuracy 0,5%FS 0,5%FS 0,5%FS 0,5%FS 0,5%FS 0,5%FS
Direct pressure measurement range 0-FS 0-FS 0-FS 0-FS 0-FS 0-FS
Direct pressure relief 0,1 mbar 0,1 mbar 0,1 mbar 1 mbar

1 mbar 10 mbar
Accuracy measuring loss in cc/’ 1%RDG+0,03cc/min 1%RDG+0,03cc/min 1%RDG+0,03cc/min 1%RDG+0,03cc/min 1%RDG+0,03cc/min 1%RDG+0,03cc/min
Measurement range in cc/’ 0-10 cc/min 0-10 cc/min 0-10 cc/min 0-10 cc/min 0-10 cc/min 0-10 cc/min
Measured measurement resolution in cc/’ 0,01 cc/min 0,01 cc/min 0,01 cc/min 0,01 cc/min 0,01 cc/min 0,01 cc/min
Accuracy measure volume in cc 1%RDG+2cc

1%RDG+2cc

1%RDG+2cc

1%RDG+2cc

- -
Volume range in cc 0-500 cc 0-500 cc 0-500 cc 0-500 cc - -
Volume measurement resolution in cc 0,1 cc/min 0,1 cc/min 0,1 cc/min 0,1 cc/min - -
Measure unit mbar, bar, psi, mmHg, mmH2O, Pa, HPa, cc/min, cc/h, pressure/s.
Dimensions 270X160X300 mm
Weight 8 kg
Display size 800x280 pixel
Operating temperature range 5-40 °C
RS232 ports 2
RS485 ports 1
“master” usb port 1
“slave” usb port 1
Ethernet port Optional
I/O signals Start, Stop, Filling, Test, Good, Reject, 4BCD
Auxiliary I/O signals (optional) 8 output programmable, 4 input programmable, 4BCD
Number of programs 300
 Test archive memory Advanced
Password block Yes
Program name Yes , 16 characters
Reference normatives EN 61010-1, EN61326-1 / EN61326/A1, EN61000-3-2 / EN61000-3-2/A14, EN61000-3-3 / EN61000-3-3/A1, EN61000-4-2 / EN61000-4-2/A1, EN61000-4-3 / EN61000-4-3/A1 / EN61000-4-3/A2, EN61000-4-4, EN61000-4-5, EN61000-4-11, EN1779

* The volumetric measurement is only present if the volumetric measurement option is foreseen

  • External exhaust solenoid with protection filter
  • 3 way pneumatic valve
  • Pilotage solenoid
  • 5 way Pneumatic valve
  • External start button
  • External start/abort pushbutton
  • External pushbutton 4 programs selection
  • Start pedal
  • Barcode reader
  • Adhesive label for printer 4500pcs
  • Aux signals extension cable
  • Venturi Vacuum generator
  • Air filter
  • Staubli male connector
  • Precision micrometer nozzle
  • Micrometer nozzle
  • M series manager software
  • TTY
  • Serial protocol
  • Electrovalve group "cylinder's" type with filter
  • PC serial cable owner - M Series
  • External temperature probe
  • 3-way pneumatic valve with pilot valve
  • MIXER-07
  • Software Data Manager
  • Staubli female fitting
  • Thermal printer with peel-off
  • Thermal printer without peel
  • Adapter cable AUX M Series - ET Series
  • Remote Start / Abort / Good / Reject
  • Air filter 5 micron

  • Interior exhaust valve
  • Pneumatic filling fast
  • Pneumatics with micro electro valves
  • Kit sniffer Hydrogen H2
  • Frontal connector for Staubli calibrated leak - (STANDARD)
  • Frontal precision pressure regulator
  • Electronic pressure Regulator
  • Auto zero primary pressure circuit
  • Positive test and negative test
  • Pre-Filling
  • Waiting Primary pressure reading
  • Secondary Output of Waste (third result)
  • Barometric measurement
  • Leak Analog Output
  • I/O 24 Vdc expansion signal card
  • Bi-manual logic Start Input
  • Ethernet plug/TCP-IP
  • Active USB port - (STANDARD)
  • WI-FI connection
  • Radio remote control selection Kit
  • High resolution measure - (STANDARD)
  • Capacitance meter for piece volume measure
  • Double branches of pre-regulated pressures
  • Dynamic Offset Correction
  • Profinet Interface
  • EtherCAT Interface
