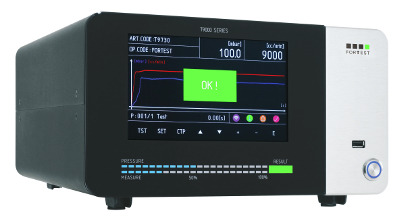

The T9731 is specifically designed for measure the adequate air flow rate in complete adherence to the standard EN 14683.

As shown in diagram C.1 on page 12 of the standard EN14683, the instrument is equipped with two air flow meters of type Mass-flow with scales 0.0...20.0 nLitres/minute (2.12 of diagram - point C.2.1) servo driven valve controlled from the software (10 of the diagram - point C.2.4), and a double gauge / differential pressure measurement (M1 and M2) as expressly indicated in point C.2.2 .

In order to comply with both the ISO accreditation standards and the expectations of the reference standard, the pressure measurements in “Differential" mode (or pressure drop) occurs in Pa or Pa/cm2 in case the sample area is set in the menu TST with area different from 1.00 cm2.


Automatic pressure regulator	Measurement up to 20,000 cc/min	Resolution starting from 0.1 cc/min


The connecting "short form" attached to the manuals providesconnection to an external vacuum pump (C.2.3), not provided.

A special "flow sensor deviation" parameter allows a continuous comparison of the two sensors of flow measurement(can be excluded by setting the threshold to 0%)
in order to comply in Run-Time mode with the validation of C.2.5.5.

In addition to what is required in the legislation, the instrumentation shall is able to measure both differential
pressures (loss of pressure (mouthpiece head) and relative pressure (mouthpiece head) both for perform tests indiscriminately at a controlled flow rate that at constant pressure.

Complete the features all the options already present inthe T9000 range as ISO, LAN traceability, Wifi, BLE , communication ports, AUX signals as more in detail indicated in the user manual.


Usb key	RS232, RS485, Can, TTY	Ethernet TCP/IP and auxiliary connectors

The T9731- EN 14683 is able to perform in the followingway fully automatic all procedures that requires regulation:

- "Breathability" tests, setting the test in mode "PRESSURE DROP” as per Procedure C.4;
- “Tool validation" tests (C.2.5.5) Part 1 of Mass-Flow Relevance
- “Equipment validation” tests (C.2.5.5) part 2 of Mass-Flow Zero Flow Seal

Advanced interface.
We thought the T9000 series as the ultimate expression oftechnology in measuring systems, with an advanced interface that is useful for analysis and studies in the prototyping or pre-series phase, as well as for the production line testing. The large 7" colour display, embedded in a panel in capacitive glass, allows total interaction in the internal and main-screen menus, and the evidence archive "smart"
contains daily, monthly and specific for each test program,so as to maintain controlled the level of quality of your products.


User friendly interface	Easy to clean	Use in sectors at 360°
